• Data output RS232, combined with external power supply• Fine adjustment available (accessories)• Type H and V (same model)• Reduced dimensions, compact• Other handwheels on request
• Data output RS232, combined with external power supply
• Fine adjustment available (accessories)
• Type H and V (same model)
• Reduced dimensions, compact
• Other handwheels on request
|
852.2001 |
852.2011 |
|
|
Measuring range [mm] |
0-25 |
0-50 |
|
Max. Error [μm] |
5 |
6 |
|
Repeatability [μm] |
2 |
|
|
Resolution [mm] |
0.001 |
0.001 |
|

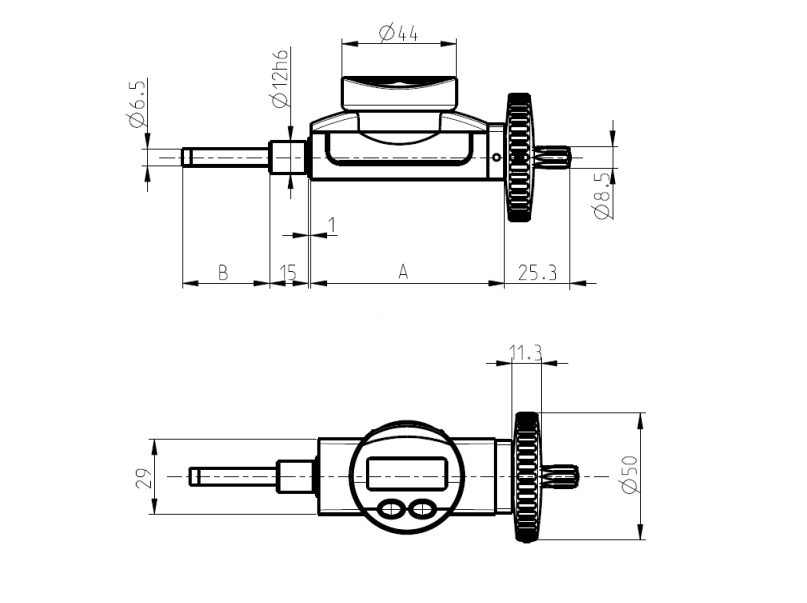

A [mm] |
74.5 |
98.5 |
|
B [mm] |
33.5 |
37.5 |
|
S_Connect: Power |
USB / RS232 / Digitmatic / Wireless(1) |
|
|
Selection of measuring direction |
Yes |
|
|
PRESET function |
Yes |
|
|
Absolute or relative measure |
Yes |
|
(1) see cables chapter
