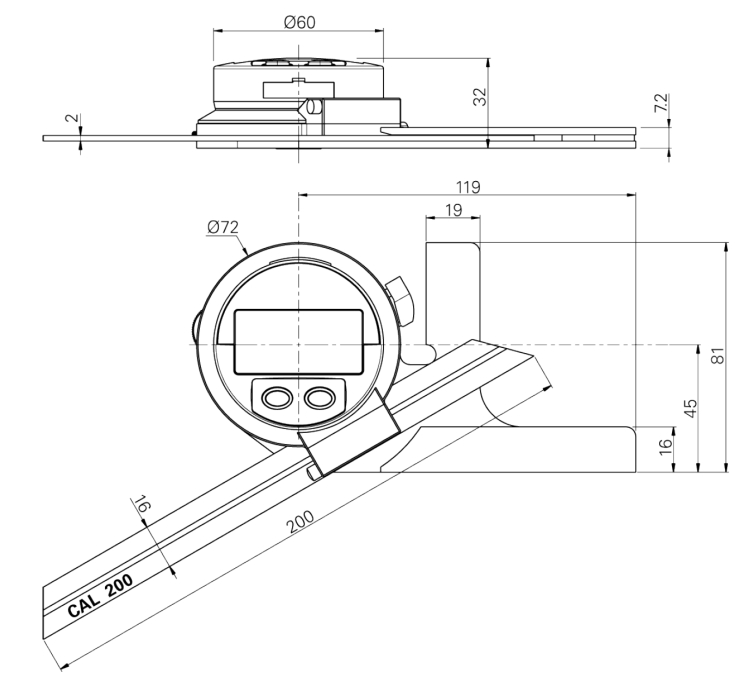

Protactor
Measuring range 1x360°, 2x180°, 4x90° Mechanical parts in stainless steel Battery life : 5’000 hours continuous
Measuring range 1x360°, 2x180°, 4x90° Mechanical parts in stainless steel Battery life : 5’000 hours continuous
|
805.6005 |
|
|
Measuring range [°] |
0-360° |
|
Max. Error |
4 minutes of arc |
|
Resolution |
1 minute of arc / 0.01 |
|
Max. rotation speed |
1080°/sec |
|
Protection rating according to IEC 60529 |
IP51 |
|
S_Connect: Opto |
USB / RS232 / Digitmatic / Wireless 1) |
|
Measuring direction |
Yes |
1) see cables chapter
