• The bench tables “to size” PS16 are designed to check internal up to 70 mm and external dimensions up to 50 mm
• The VS and LVS versions have an integrated display as well as an opto - RS 232 output
• The VP and LVP versions have an integrated P25 or P50 Sylvac probe. The measured value will be displayed using a D50S, D80S and D100S display unit
• These bench tables can be equipped with different kind of tables to fit your needs as well as with several types of anvils of any shapes
• A ball bearing, an adjustable and reversible measuring force, as well as many other features and accessories make these tables a must for your workshop or your inspection room
• Adjustable measuring force
• Data output Opto-RS / USB
• Standard measuring anvils Ø 6.5 mm
• Wide choice of special applications on our specific flyer «Measuring benches PS15-16-17»
|
External and internal measurement
|
908.1221
|
908.1231
|
908.1222
|
908.1232
|
|
Type
|
VS25
|
VS50
|
|
Measuring capacity C [mm]
|
25
|
50
|
|
Measuring range [mm]
|
38
|
68
|
|
Max. Error [μm]
|
5
|
1.5
|
7
|
2.5
|
|
Repeatability [μm]
|
1
|
0.3
|
1
|
0.4
|
|
Resolution [mm]
|
1
|
0.1
|
1
|
0.1
|
|
Measuring force (Adjustable) [N]
|
0.2-1.0(1)
|
|
Weight [kg]
|
908.1221
|
908.1231
|
6.5
|
5.5
|
|
Anvils clamping dimension
|
Ø 1.5
|
|

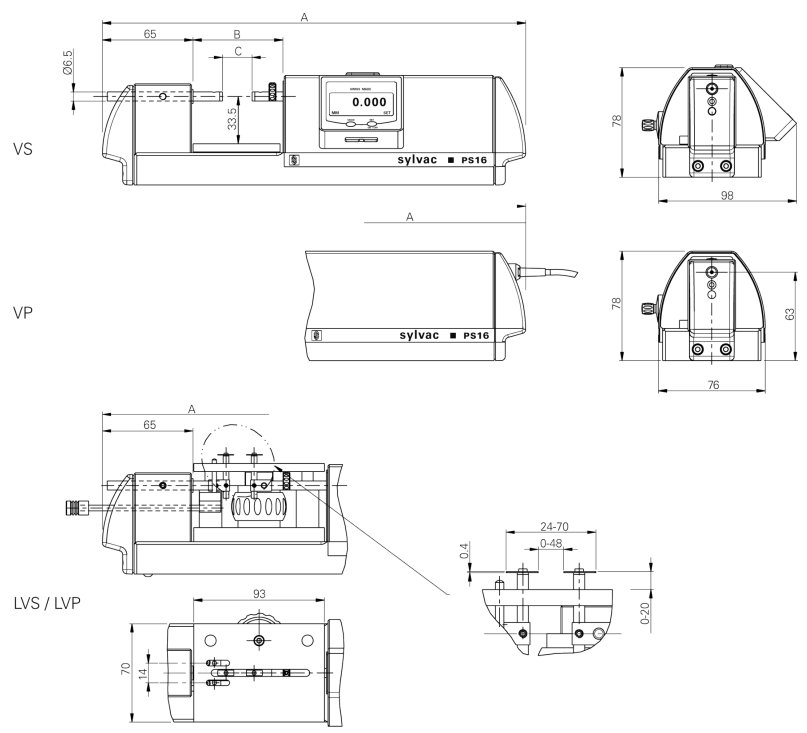

A [mm]
|
301
|
401
|
|
B [mm]
|
65
|
96
|
|
2-points Internal measurement with centering pins
|
908.1224
|
908.1234
|
|
Type
|
LVS50
|
LVP50
|
|
Measuring capacity C [mm]
|
24-70
|
|
Measuring range [mm]
|
48
|
|
Max. Error [μm]
|
10
|
6
|
|
Repeatability [μm]
|
4
|
2
|
|
Resolution [mm]
|
1
|
0.1
|
|
Measuring force (Adjustable) [N]
|
0.2-1.0(1)
|
|
Weight [kg]
|
7
|
|
Thickness of anvils
|
0.4
|
|
Anvils clamping dimension
|
Clamping device
|
|
Adjustable range of the table
|
20
|
|
A [mm]
|
418
|
|
B [mm]
|
96
|
(1) ±20%
|
3-points Internal measurement
|
908.1235
|
908.1236
|
908.1237
|
908.1238
|
908.1239
|
|
Type
|
0.8-1.3
|
1.3-2.5
|
2.5-4
|
4-8
|
8-12.5
|
|
Max. Error, Repeatability, Measuring force, dimensions
|
VP25
|
|
Measuring pins
|
Ø0.5
|
Ø0.5
|
Ø10
|
Ø1.5
|
Ø1.5
|
|
Master ring gauges
|
0.8 & 1.3
|
1.3 & 2.5
|
2.5 & 4
|
4 & 8
|
8 & 12.5
|
