- Automatic wake-up by moving the measuring spindle. S.I.S
- Sleeping mode after 20 min. of no use. S.I.S
- Position memorized in sleeping mode. S.I.S
- Water protected for heavy-duty work with coolants and lubricants, protection rating IP67 according to IEC 60529, with or without connector
- Measuring range 0-102 mm covered with 3 instruments only (0-30, 30-66, 66-102)
- Set of 3 micrometers 0-102 mm available
- Quick displacement of the measuring spindle 12 mm / rotation
- Adjustable measuring force 5N / 10N
- Repeatability and reproducibility unequalled
- Battery life: 12’000 hours continuous
- Thimble made of Delrin®
| |
903.0300
|
903.0301
|
903.0302
|
903.0600
|
903.0601
|
903.0602
|
903.1000
|
903.1001
|
903.1002
|
|
Measuring range
|
mm
|
0-30
|
0-25
|
0-25
|
30-66
|
25-60
|
25-60
|
66-102
|
60-95
|
60-95
|
|
Max. Error G 1)
|
μm
|
3
|
3
|
3
|
4
|
4
|
4
|
5
|
5
|
5
|
|
Repeatability 2)
|
μm
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
1
|
|
Anvils type
|
|
Ø 6.5
|
Ø 2
|
0.7 x 6.5
|
Ø 6.5
|
Ø 2
|
0.7 x 6.5
|
Ø 6.5
|
Ø 2
|
0.7 x 6.5
|
|

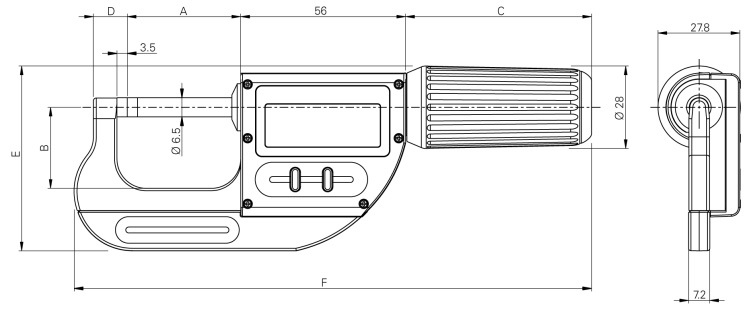

A [mm]
|
|
38.5
|
33.5
|
33.5
|
74.5
|
69.5
|
69.5
|
110.5
|
105.5
|
105.5
|
|
B [mm]
|
|
27.5
|
27.5
|
27.5
|
43
|
43
|
43
|
60
|
60
|
60
|
|
C [mm]
|
|
63
|
63
|
63
|
75
|
75
|
75
|
75
|
75
|
75
|
|
D [mm]
|
|
11.5
|
11.5
|
11.5
|
12.5
|
12.5
|
12.5
|
13.5
|
13.5
|
13.5
|
|
E [mm]
|
|
63
|
63
|
63
|
85
|
85
|
85
|
106
|
106
|
106
|
|
F [mm]
|
|
176
|
176
|
176
|
231
|
231
|
231
|
270
|
270
|
270
|
|
S_Connect: Proximity
|
|
USB / RS232 / Digitmatic / Wireless 3)
|
|
Protection rating according to IEC 60529
|
|
IP67 even connected
|
|
Setting by PC
|
|
•
|
|
Adjustable measuring force
|
|
5N / 10N
|
Force 10N (5N on demand)
|
|
Non-rotating spindle
|
|
•
|
|
Fast movement
|
|
•
|
|
PRESET function
|
|
•
|
|
Smart Inductive Sensor (S.I.S)
|
|
•
|
|
Memory set HOLD
|
|
•
|
1) according to DIN 863
2) ±1 digit
3) see cables chapter
