SHIMPO Force Gauge BRX Series

Nidec-Shimpo Corporation was built to contribute to the development of society and welfare of the general public all over the world by supplying highest quality products in sincere and enthusiastic dedication to the trinity of technology. One of the products offered by the company is Electronic Control Type Servo Driver - Shimpo BRX Series.

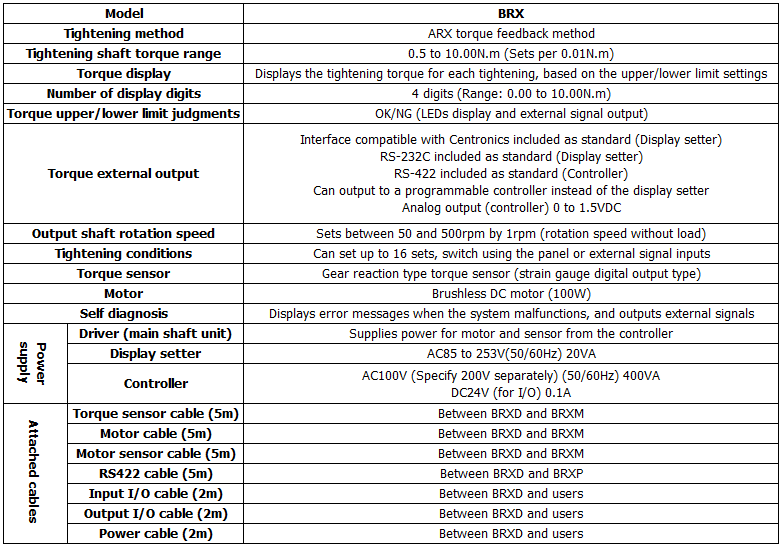

Shimpo BRX Series is devised to enable a wide range of tightening. It can support a wide range of tightening between 0.5 and 10.00N.m, and with the ARX continuously variable transmission, the rotation speed automatically changes according to the load, which realizes high accurate tightening in spite of the small motor. When tightening finishes, Shimpo BRX Series displays the maximum output torque, and judge acceptance using the stored upper/lower limit values. In addition, this machine is equipped with Centronics compatible printer output, RS-232C output, and analog output as standard.

To serve your interest on Shimpo solutions, kindly contact our Sales Department
