Sylvac Ultima is devised for your convenient application in the process of accurately measuring holes which conform to DIN2250. It is also engineered with constant-force digital readout to ensures that the measuring pressure remains constant throughout the measurement. Sylvac's genuine solution will help your company minimize human error in recording and provide you a realtime and traceable measurement whenever asked by customer with the most demanding specification.
Depends on your application, Sylvac Ultima inherently provides investment value with inspection practicality. Various measuring heads are available, even the special ones can be requested. Sylvac Ultima is highly regarded by many operator in doing routines as in piping valve or boiler system maintenance, cannon barrel and firing turret, marine combustion chamber, suction nozzle, gas tube, pneumatics, hydraulics, coated chamber, and many more.
Sylvac Ultima– Internal Measurement features:

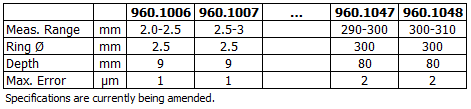

- Measuring range from 2 to 310 mm
- Resolution up to 0.0001 mm
- Mechanical repeatability : 1μm from 2 to 60 mm, 1.5μm from 60 to 210 mm and 2μm from 210 to 310 mm
- Robust construction designed for use by inspection and machine shop
- UKAS certificate supplied with each head
- UKAS certificate supplied with each setting ring
- Rings manufactured according to DIN 2250 part 2 (standard)
- Blind bore measuring from 12 to 310 mm
- Compatible with all Sylvac digital display
- Special heads on request ( threads, grooves, splines, slot width, etc.)
To serve your interest on various Sylvac solutions, kindly contact our Sales Department
Sylvac Ultima– Internal Measurement
Measuring Heads
Sets
Handles
Extensions
To serve your interest on various Sylvac solutions, kindly contact our Sales Department
Request A Quote
To receive further information on SYLVAC ULTIMA, please complete the following form. We will reply as soon as possible
