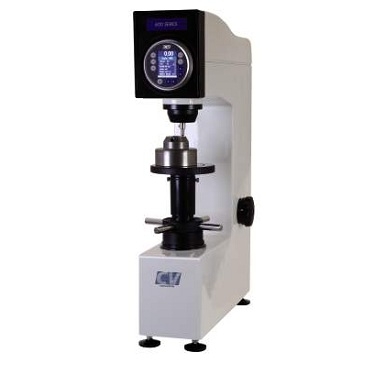

Basic digital regular Rockwell type tester (CV-600BDL/MBDL) and Superficial Rockwell type tester (CV-600MBDL/S) offering accuracy, reliability and durability at an extremely affordable price.

Features

• All functions like BD/MBD series but equipped with OLED full colour multi function display
• Additional advanced functions such as CONVERSION to Brinell, Vickers and all Rockwell scales. USB-2/RS-232 output, printer output for detailed measuring report, Go/No Go limit settings, 99 memory positions, PROGRAM mode stores 50 test program settings, shape correction setting, full statistics
• Direct reading of Rockwell scales HRA, B, C, D, E, F, G, K, L, M, P, R, S (HRN, T, W, X & Y CV-600MBDL/S)
• Accuracy conforms to EN-ISO 6508 and ASTM E-18
• Easy load force selection by robust dial knob
• Oil brake with variable damping by adjustable knob (CV-600BDL)
• Large capacity to accommodate large test specimen
• Selectable control of load duration (dwell time)
• Motorised testing procedure (CV-600MBDL & CV-600MBDL/S)
• Rugged construction, will stand up to the harshest environments
• Standard delivery including accessories ready for testing all scales
• Support IOT

Standard Delivery

• Diamond Rockwell indenter
• Rockwell ball indenter 1/16"
• Hardness test block ±60HRC
• Hardness test block ±25HRC
• Hardness test block ±85HRB
• Spare balls 1/16” (5 pcs)
• Flat anvil ø60mm
• Testing table large ø150mm
• V-anvil ø40mm
• Power cable
• Adjustable feet (4 pcs)
• Spindle protection cover
• Solid accessories case
• CV Instruments certificate
• Installation & user manual

Accessories

•  Reference hardness blocks
• Certified indenters & balls
• Clamping protection nose
• Pedestal spot anvil ø10mm
