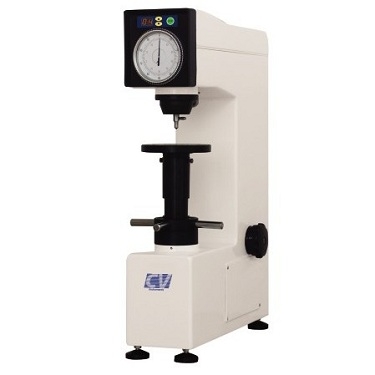

Basic regular Rockwell type tester (600A/MA) and Superficial Rockwell type tester (600MA/S) offering accuracy, reliability and durability at an extremely affordable price.

Features

• Rugged construction, will stand up to the harshest environments
• Direct reading of Rockwell scales HRC, B, A, F or Superficial: HRT, HRN
• Accuracy conforms to EN-ISO 6508 and ASTM E-18
• Easy load force selection by robust dial knob
• Oil brake with variable damping by adjustable knob (CV-600A)
• Large capacity to accommodate large test specimen
• Electronic control of load duration (dwell time) (CV-600MA & CV-600MA/S)
• Motorised testing procedure (CV-600MA & CV-600MA/S)
• Standard delivery including accessories ready for testing all scales

Standard delivery

• Main unit
• Diamond Rockwell indentor
• Rockwell ball indentor 1/16"
• Spare lamps 6V - 12W (2 pcs)
• Hardness test block ±90HR15N
• Hardness test block ±75HR30N
• Hardness test block ±75HR30T
• Flat anvil ø 60 mm
• Flat anvil ø 150 mm
• V-anvil ø 40 mm
• Power cable
• Fuse 0.5A (2 pcs)
• Adjustable feet (4 pcs)
• Spindle protection cover
• Solid accessories case
• CV Instruments certificate
• Installation & user manual

Optional accessories

• Certified test blocks
• Certified indentors & balls
