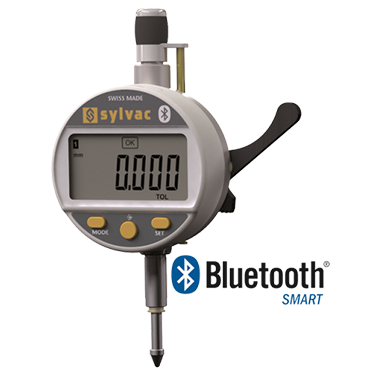

Sylvac S_Dial Work Bluetooth SMART, the first digital dial gauge with in-built bluetooth

The Sylvac S_Dial Work Bluetooth Smart is a digital indicator with built-in Bluetooth transmission. It has a max error of up to 3um with a reinforced clamping shaft.
Combine with D300S digital display for automatic detection of gauge and easy data collection experience.

Specifications:

• Measuring ranges: 12.5 mm / 25 mm
• Maximum error of 3 μm
• Protection rating IP67 (without rubber boot) with and without connector
• Detection range max 50m, varies according to surrounding conditions

Functions:

• 100% programmable by PC
• Min/Max/Delta/Tol/Factor/Preset/Auto-off functions etc
• Tolerances limits indicator
• Wireless and wired capability
• In-built Bluetooth
• Proximity cable
• Data Collection and Transmission
• Support IOT

Data Collection Options:

• Sylconnect PC software
• D300S digital display with in-built statistical functions
• Direct input to SPC, Labview, or other manufacturing control and analysis software

To serve your interest on various Sylvac solutions, kindly contact our Sales Department
