1. Diatest Split Ball Probe

Range of application:

• Standard probes, hard chrome plated: Ø 0.47 – 41.1mm
• Standard probes, carbide inserted:Ø 1.5 – 41.1 mm
• Standard probes, ceramic inserted: Ø 3.7 – 41.1 mm
• Blind bore probes, hard chrome plated: Ø 1.5 – 41.1 mm
• T-3P: 3 – Point probes: Ø 4.75 – 150.6 mm
• T-T: probes to measure deeper bores: Ø 2.05 – 9.8 mm
• T-PA: probes for parallel measurement: Ø 4.7 – 41.1 mm
• Special shapes on request, respectively measurement of O.D., recesses, etc
• Zero setting in setting master e. g. according to DIATEST company standard or DIN 2250-C
• Repeatability (standard split-ball probes): manual gauging ca. 1 μm, gauging in stand < 0.5 μm

2. DIATEST - Chamfer Gauges

Diatest Internal Taper Gauges IKT: measure the largest diameter of a conical bore or a conical groove

• IKT60 for cone < 60° = Measuring range 0.5 to 121 mm, several instruments needed
• IKT90 for cone < 60° and > 90°= Measuring range 0.5 to 120 mm, several instruments needed
• IKT127 for cone < 90° and => 127° = Measuring range 0.5 to 121 mm, several instruments needed
• Calibration at factory or with setting master.

Diatest External Taper Gauges AKT: measure the smallest diameter of an external cone.

• AKT60 for cone < 60° = Measuring range 5 to 121 mm, several instruments needed
• AKT90 for cone > 60° and < 90° = Measuring range 5 to 120 mm, several instruments needed
• AKT127 for cone > 90° and <127° = Measuring range 5 to 120 mm, several instruments needed
• Calibration at factory or with setting master.

Diatest Chamfer Gauges KT resp. KT-B: measure directly a 45° chamfer on rectangular and cylindrical work pieces, even bores and slots.

• KT: for straight chamfers and external diameters and slots over 16 mm
• KT-B: For bores from Ø28 mm
• Calibration at factory (setting master included for standard KT/KT-B)

IKT, AKT, KT and KT-B in standard version with shock protected indicator with a scale graduation of 0,01mm.

All gauges can also be equipped with a digital indicator MUM as an option (scale graduation 0.01mm/.0005“). Not only the standard angles but also any other angle is possible. All measured values can be recorded and transferred wireless (DIAWIRELESS) or via cable.

3. DIATEST - Setting Rings

Setting rings for setting gauges to zero

• DIATEST setting rings according to company standard, nominal sizes from 0.500 to 40.000 mm on stock

• DIN 2250-C setting rings, from 1.000 to 300.00 mm available, including intermediate sizes

• DIN 2250-B setting rings on request

4. DIATEST - Thread Depth Gauge

Universal system: DIN-gauges of all manufacturers can be used (DIN cone 1:50)

Thread gauges: M2.5 to M18 (DIN 2282 and DIN 2284)
Cylinder Plug gauges: Ø 2.0 to 18.0 mm (DIN 2248 and DIN 2249)

• Reading scale is always visible
• Universal setting master available
• Special features like depth stop, air- and dirt-groove or extensions on request
• Special features of Diatest TD-Gauge+ DIGITAL: LCD display with a resolution of 0.01 mm / 0.0005 Inch and preset
• Optional transfer of measured values via DIAWIRELESS or via cable by OPTO-RS232 interface
• Switch mm / Inch
• Preset-Funktion
• Special features of the analog version TD-Gauge+:

Possible reading accuracy 0.05 mm
Pre- and post-decimal point places are readable at a glance (vernier)

5. DIATEST - Plug Gauge BMD

Plug Gauge BMD memungkinkan:

• Pengukuran statis dan dinamis;
• Deteksi penyimpangan dimensi dan cacat bentuk;
• Sebagai alat tangan di bor langsung di mesin;
• Pemasangan alat ukur dan mesin.

Berbagai pilihan tipe dasar dalam program standar yang dilengkapi dengan aksesori yang berguna memastikan bahwa hampir semua lubang yang ditemui dalam praktik saat ini dapat diukur dengan tepat.

BMD (desain standar) memiliki lapisan krom keras pada silinder pemandu, dengan kira-kira. 1000 HV. Cocok untuk kondisi pengukuran kasar.

Pemilihan bahan kontak pengukur bergantung pada komposisi dan desain benda kerja: Karbida, Krom keras, Keramik, Ruby, Plastik, dan Berlian.

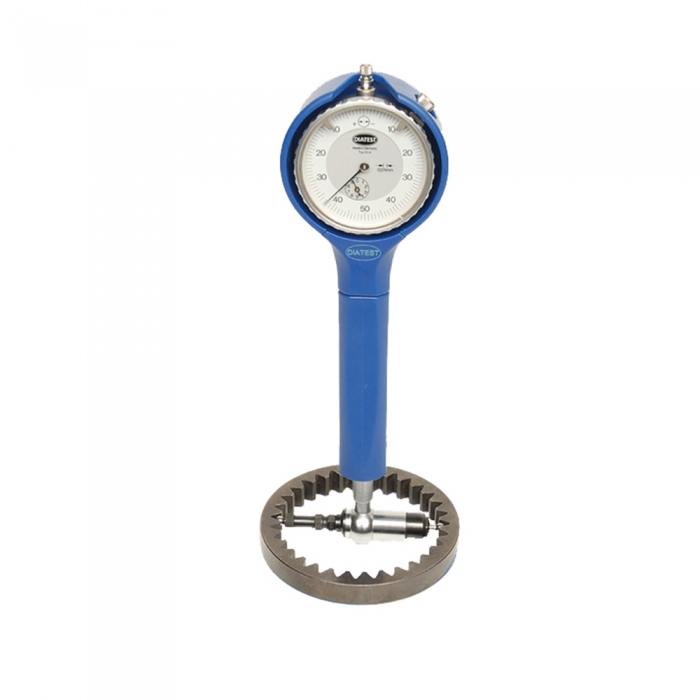

6. DIATEST - Internal Gear Gauge

Features:

• The range between balls Mi = 3.5 to 333 m
• Constructed in the same way as the split-ball and plunger probe system
• Split-ball and plunger probe accessories can be applied
• Tungsten carbide measuring balls
• Starting from Mi = 9.3 mm (T-ZM3!) the ball anvils are interchangeable
• Measuring range from 0.6 to 3 mm, depending on model
• Identical to Split-Ball and Plunger Probe system
• Measurement of diameter and length
• Alternative: self-centering Plug Gauge BMD-IV (starting from cylinder-Ø 10 mm) for serial measurement
